Canyon Ridge® Collection Limited Edition Series – Carriage House Designs
by
Insulated carriage house garage doors with faux wood overlays.
Contact us about this product
Beautiful and unique
Beautiful and unique, Canyon Ridge® Limited Edition Series carriage house doors are constructed with an energy-efficient, Intellicore® insulated steel base and finished with faux wood composite cladding and overlays. The appearance is that of authentic swing-out doors but with the convenience of modern, upward operation.
Download Product BrochureOverview
The CANYON RIDGE® collection LIMITED EDITION series combines the most popular elements of residential garage doors to create a unique, fashionable and functional garage door for your home. The time-tested, carriage-house design meets the modern strength of steel and composite, providing a warm authentic look with lower maintenance and high durability.
Construction Overview
- 5-layer steel carriage house garage doors with faux wood overlay.
- 2" Intellicore® polyurethane insulation with a thermal break. This garage door has a 20.4 R-value.
- Features Clopay’s patented Safe-T-Bracket ® safety feature.
- WINDCODE® reinforcement product available for high wind load applications. (Click for details)
Design Overview
- The cladding and overlay materials are molded from actual wood pieces to reproduce the natural texture and intricate grain patterns of the species they emulate.
- Available composite cladding materials are Clear Cypress, Mahogany and Pecky Cypress. Available composite overlay materials are Clear Cypress and Mahogany.
- Many glass options, including clear, seeded, rain, obscure, frosted and insulated.
- Attractive beveled edge clip-in window grilles are removable for easy cleaning.
- Five factory finish color options available, including Walnut, White Wash and more.
- Comes complete with spade lift handles and step plates. Additional decorative hardware options available.
LIFTMASTER® ELITE SERIES™ Clopay Recommends LiftMaster® Elite Series® openers for these garage doors. These openers have a range of features that truly make lives easier.
Door Designs
SERIES 1
DESIGN 01
DESIGN 11
DESIGN 12
DESIGN 13
SERIES 2
DESIGN 21
DESIGN 22
DESIGN 23
SERIES 3
DESIGN 31
DESIGN 32
DESIGN 33
DESIGN 34
DESIGN 35
DESIGN 36
DESIGN 37
DESIGN 38
SERIES 5
Design 51
Design 52
Design 53
Design 54
Design 55
For more information regarding construction options per panel style, click here
Top Sections
SERIES 1 & 2 SOLID
TOP11
Canyon Ridge LE TOP11
TOP12
Canyon Ridge LE TOP12
TOP13
Canyon Ridge LE TOP13
ARCH1
Canyon Ridge LE ARCH1 SOLID
SERIES 1 & 2 WINDOW DESIGNS
REC11
Canyon Ridge LE REC11
REC13
Canyon Ridge LE REC13 Designs
REC14
Canyon Ridge LE REC14
SQ23
Canyon Ridge LE SQ23
SQ24
Canyon Ridge LE SQ24
ARCH1
Canyon Ridge Limited Edition ARCH1 with Window
ARCH3
Canyon Ridge LE ARCH3 Designs 11-12-13-21-22-23
ARCH4
Canyon Ridge LE ARCH4 Designs 11-12-13-21-22-23
ARCH13
Canyon Ridge Limited Edition ARCH13
ARCH14
Canyon Ridge Limited Edition ARCH14
DOUBLE TOP SECTIONS
ARC1A - SOLID (Double Door)
CrARC1A - CR LE
ARC1A - WINDOW (Double Door)
CrARC1AWindow-DF-CC-Dbl - CR LE
ARC3A - WINDOWS (Double Door)
CrARC3A-DF-CC-Dbl
ARC4A - WINDOWS (Double Door)
CrARC4A-DF-CC--Dbl
ARC13A - WINDOWS (DOUBLE DOOR)
Canyon Ridge Limited Edition ARC13A
ARC14A - WINDOWS (DOUBLE DOOR)
Canyon Ridge Limited Edition ARC14A
Colors
WALNUT FINISH
DARK FINISH
MEDIUM FINISH
SLATE FINISH
WHITE WASH*
PRIMED
BLACK*
*Available on select models. For more information regarding color availability, click here.
Hardware Designs
HANDLES
SPADE LIFT HANDLES(included)
SPEAR LIFT HANDLES
COLONIAL LIFT HANDLES
DECORATIVE LIFT HANDLES
RING DOOR KNOCKER
.png)
ESCUTCHEON PLATE(S)
TWISTED "L" HANDLES
HINGES
SPADE STRAP HINGE
SPEAR STRAP HINGE
COLONIAL STRAP HINGE
PLATES
SPADE STEP PLATE(included)
SPEAR STEP PLATE
COLONIAL STEP PLATE

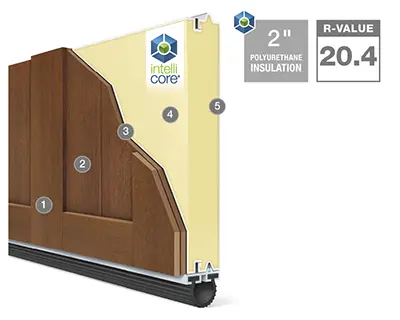

- Faux wood composite overlay
- Faux wood composite cladding
- Steel
- 2" Intellicore® insulation with thermal break
- Steel
- Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
- High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
- Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
- Grilles are removable for easy cleaning.
- Patented Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
Safe-T Bracket®
- Door sample shown in Walnut Finish.
- Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability. (Click for details)
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability. (Click for details)
